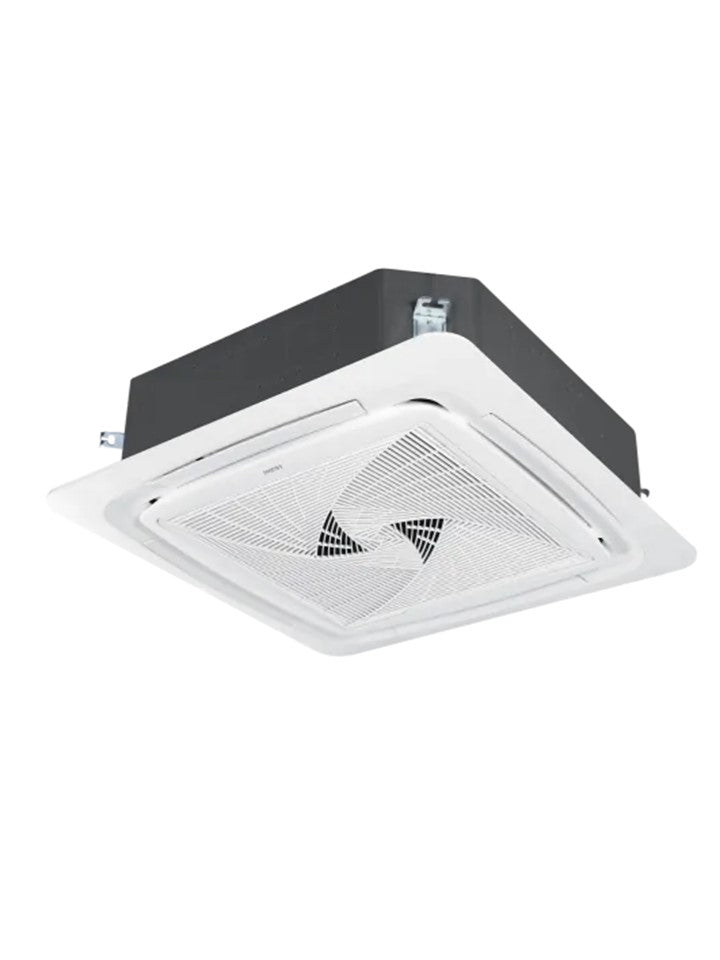

HAIER Cassette AC 1.5-Ton Haier Heat & Cool Inverter HBU-18HE/DC

Capacity (Ton)                                                                    1.5 Ton

coolant/gas                                                                       R22

Color                                                                                White

“Cooling Capacity KW”                                                    14

“Cooling Capacity (BTU)”                                                1800

Heating Capacity (BTU)                                                   1800

Air Circulation (m3/h)                                                      1800

Rated Power input (KW) Cooling                                    5.27

Rated Power Input (KW) Heating                                    –

Power Supply (Ph/V/Hz)                                                  3/380-415/50

EER/COP(W/W)                                                               2.84

Gas Side Dia (mm)                                                           12.7

Liquid Side Dia (mm)                                                       9.52

Max Pipe Length (m)                                                       15

Max Drop (m)                                                                  05

Warranty                                                                         1 year Parts, 5 Years compressor

Indoor Net Dimension W/D/H                                       718/680/380

Indoor Packing Dimension W/D/H                                  930/930/390

Outdoor Net Dimension W/D/H                                    960/405/760

Outdoor Packing Dimension W/D/H                               1130/490/930

Panel Net Dimension W/D/H                                         740/750/115

Panel Packing Dimension W/D/H                                    992/992/115

Indoor Gross weight (Kg)                                                23

Indoor Net weight (Kg)                                                    18

Outdoor Gross Weight (Kg)                                             52

Outdoor Net Weight (Kg)                                                48

Panel Gross Weignt (Kg)                                                  7.7

Panel Net Weignt (Kg)                                                     5.3

Indoor Noise [db(A)] (Hi/Mid/Lo)                                    50/46/42

Outdoor Noise [db(A)]                                                     59
