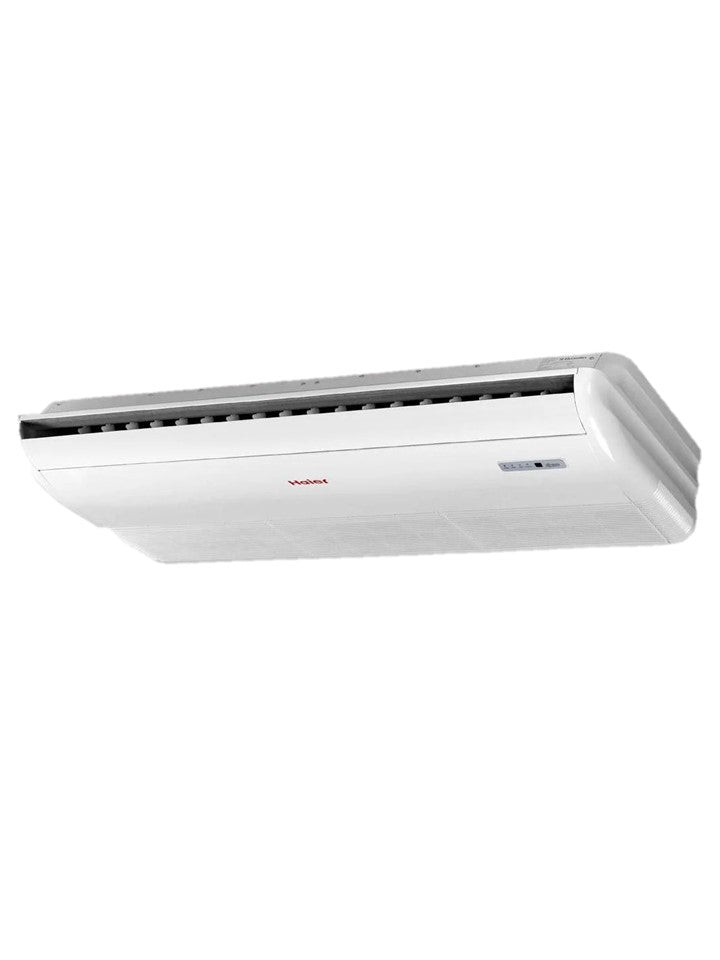

HAIER 2-Ton Heat & Cool Inverter Convertible Type AC HCFU-24HE/DC

Capacity (Ton)                                                                   2 Ton                                                                     –

Color                                                                                White

“Cooling Capacity KW”                                                    14

“Cooling Capacity (BTU)”                                                2400

Heating Capacity (BTU)                                                   –

Air Circulation (m3/h)                                                      2000

Rated Power input (KW) Cooling                                    4.92

Rated Power Input (KW) Heating

Power Supply (Ph/V/Hz)                                                  3/380-415/50

EER/COP(W/W)                                                               2.86

Gas Side Dia (mm)                                                           19.05

Liquid Side Dia (mm)                                                       9.52

Max Pipe Length (m)                                                       50

Max Drop (m)                                                                  30

Warranty                                                                          1 year Parts, 5 Years compressor

Indoor Net Dimension W/D/H                                       1580/700/240

Indoor Packing Dimension W/D/H                                 1720/800/330

Outdoor Net Dimension W/D/H                                    1008/410/830

Outdoor Packing Dimension W/D/H                               1130/490/930

Panel Net Dimension W/D/H                                         –

Panel Packing Dimension W/D/H                                    –

Indoor Gross weight (Kg)                                                61

Indoor Net weight (Kg)                                                    54

Outdoor Gross Weight (Kg)                                             100

Outdoor Net Weight (Kg)                                                95

Panel Gross Weignt (Kg)                                                  —

Panel Net Weignt (Kg)                                                     —

Indoor Noise [db(A)] (Hi/Mid/Lo)                                    53

Outdoor Noise [db(A)]                                                     61
